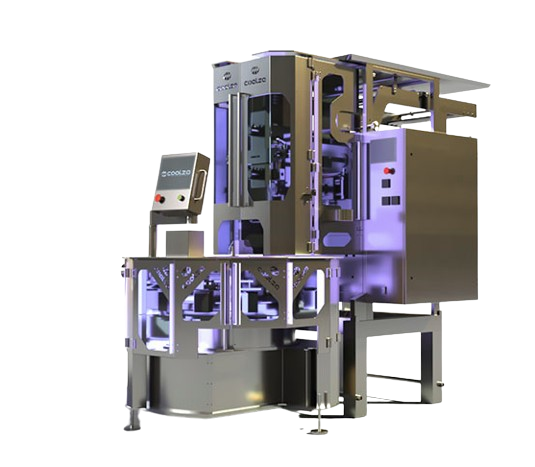

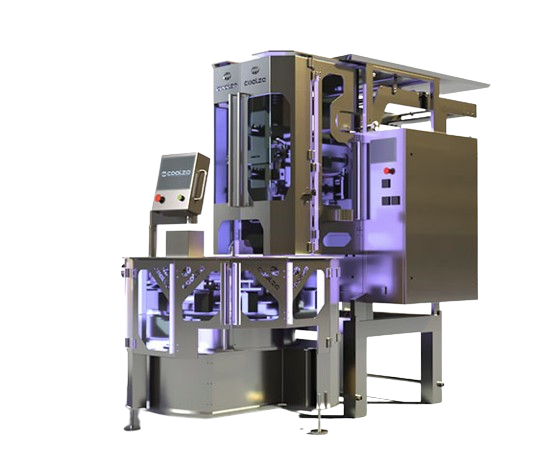

Top folding

Suitable for small packages with double block bottom and automatic carousel Ideal for medium and high production.

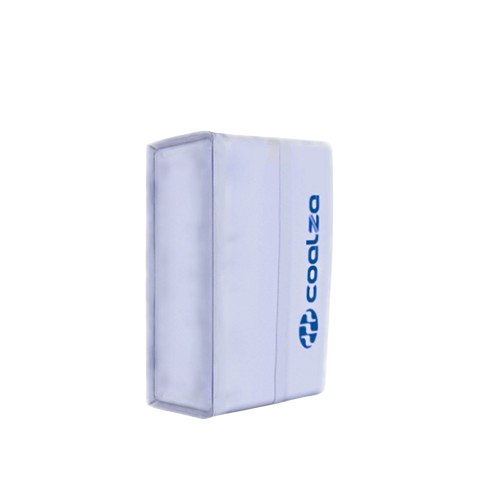

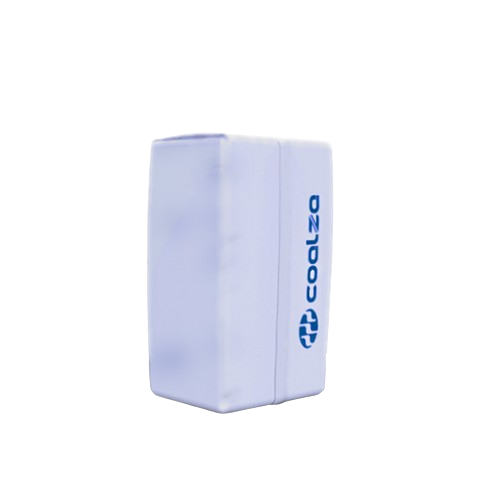

The continuous evolution of the materials and packaging elements used in the packaging industry requires the possibility of creating bags with double square bottoms, which result in small, vacuum-packed, and perfectly square packages.

The system receives the filled and partially-closed bag from the vertical packaging machine and a series of devices eliminate the excess air and close the package. The upper flap is folded over itself and fastened, thus creating the double square bottom.

The modularity of the device allows coupling with devices, such as: open and close sticker applicators, markers, printers and labelling machines. The carousel can be customized on the basis of the type of product to package and the format to be made.

Specifications

• Speed: Up to 50 BPM
• Dimensions: min. 120 x 100 mm, max. 330 x 400 mm
• Bag types: double block bottom, with gusset
• Bags Material: AL/PE, PA/PE, Paper/PE, PP/PE

Features

• Modular system that allows various products to be handled until the desired degree of compactness is obtained and to integrate devices such as sticker applicators, markers, printers and labelling devices.
• Highly customized system.
• The double square bottom format best meets the aesthetic and display requirements of organized food distribution.
• The double square bottom bags allows elimination of air from the package itself, thus resulting in an increased product shelf life.
• The amount of oxygen can be reduced further with filling in modified atmosphere.
• The packages created in this way can be easily combined in boxes or heat-shrunk bundles.
• Electronic management system able to constantly monitor the entire operating cycle.
• Easy plant cleaning and dosing elements can be inspected completely.
• Touch-screen operator panel.
• Self-diagnosis system for anomalies and verification via display.

Applications
